Auto Generated Plans
Albany Serenity Village — Three density variants from project schedule
Building Site Breakdown
Building footprints from the schedule. Parking is shared across the site, not assigned per building.
| Product | Units/Bldg | Count | Structure | Parking (shared) | Setbacks & Buffer | Lot Size | Land Used |
|---|---|---|---|---|---|---|---|
| Community Center | 1 | ×1 | 3,025 sf (55×55) | 12 spaces (12.1/unit) | 14,870 sf | 21,525 sf (105×205) | 0.5 ac |
| Albany SF (1,620 sf) | 1 | ×55 | 1,620 sf (36×45) | 2 spaces (2.0/unit) | 4,260 sf | 4,845 sf (51×95) | 6.1 ac |
| Albany TH (1,400 sf) | 1 | ×40 | 704 sf (22×32) | 2 spaces (2.0/unit) | 1,512 sf | 1,474 sf (22×67) | 1.4 ac |
| Albany SM (1,200 sf) | 1 | ×25 | 1,200 sf (30×40) | 2 spaces (2.0/unit) | 3,000 sf | 3,600 sf (45×80) | 2.1 ac |
| Albany Fourplex (3,200 sf) | 4 | ×15 | 1,650 sf (55×30) | 6 spaces (1.5/unit) | 2,175 sf | 5,625 sf (75×75) | 1.9 ac |
| 136 bldgs | 181 units | 12.0 ac |
20.9 Acre Site
12.0 acres are occupied by buildings and their lots.
The other 9.0 acres are available for
shared parking, driveways, stormwater ponds, and landscaping.
Rule of thumb: buildings typically occupy 25–35% of a commercial site. This plan uses 57%.
High Density (100%)
Medium Density (66%)

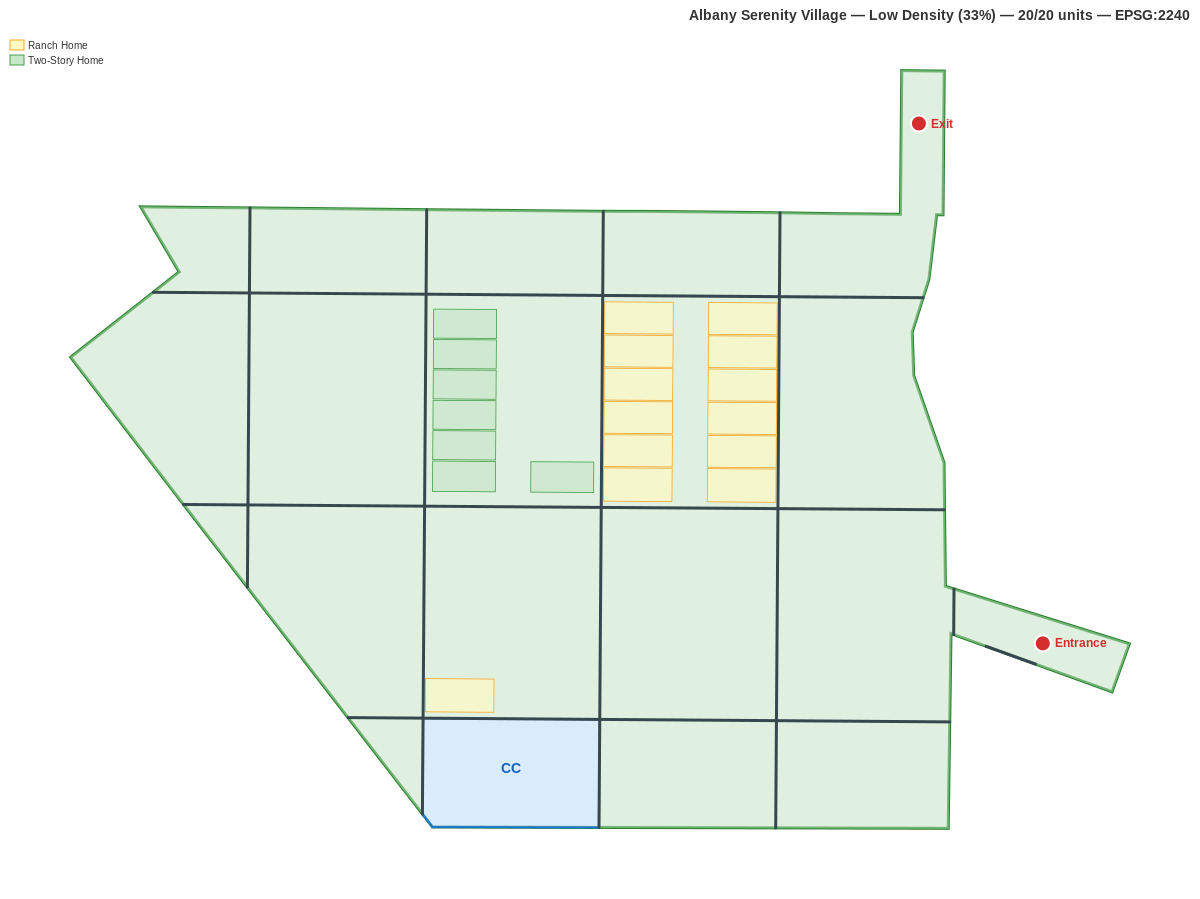

Low Density (33%)
