Auto Generated Plans
Propel — Three density variants from project schedule
Building Site Breakdown
Building footprints from the schedule. Parking is shared across the site, not assigned per building.
| Product | Units/Bldg | Count | Structure | Parking (shared) | Setbacks & Buffer | Lot Size | Land Used |
|---|---|---|---|---|---|---|---|
| Garden Apartment 8-Unit | 8 | ×14 | 3,000 sf (50×60) | 12 spaces (1.5/unit) | 3,400 sf | 7,350 sf (70×105) | 2.4 ac |
| Townhome 4-Plex | 4 | ×24 | 1,100 sf (22×50) | 4 spaces (1.1/unit) | 1,980 sf | 2,720 sf (32×85) | 1.5 ac |
| Community Center | 1 | ×1 | 3,025 sf (55×55) | 12 spaces (12.1/unit) | 14,870 sf | 21,525 sf (105×205) | 0.5 ac |
| 39 bldgs | 209 units | 4.4 ac |
19.4 Acre Site
4.4 acres are occupied by buildings and their lots.
The other 15.0 acres are available for
shared parking, driveways, stormwater ponds, and landscaping.
Rule of thumb: buildings typically occupy 25–35% of a commercial site. This plan uses 22%.

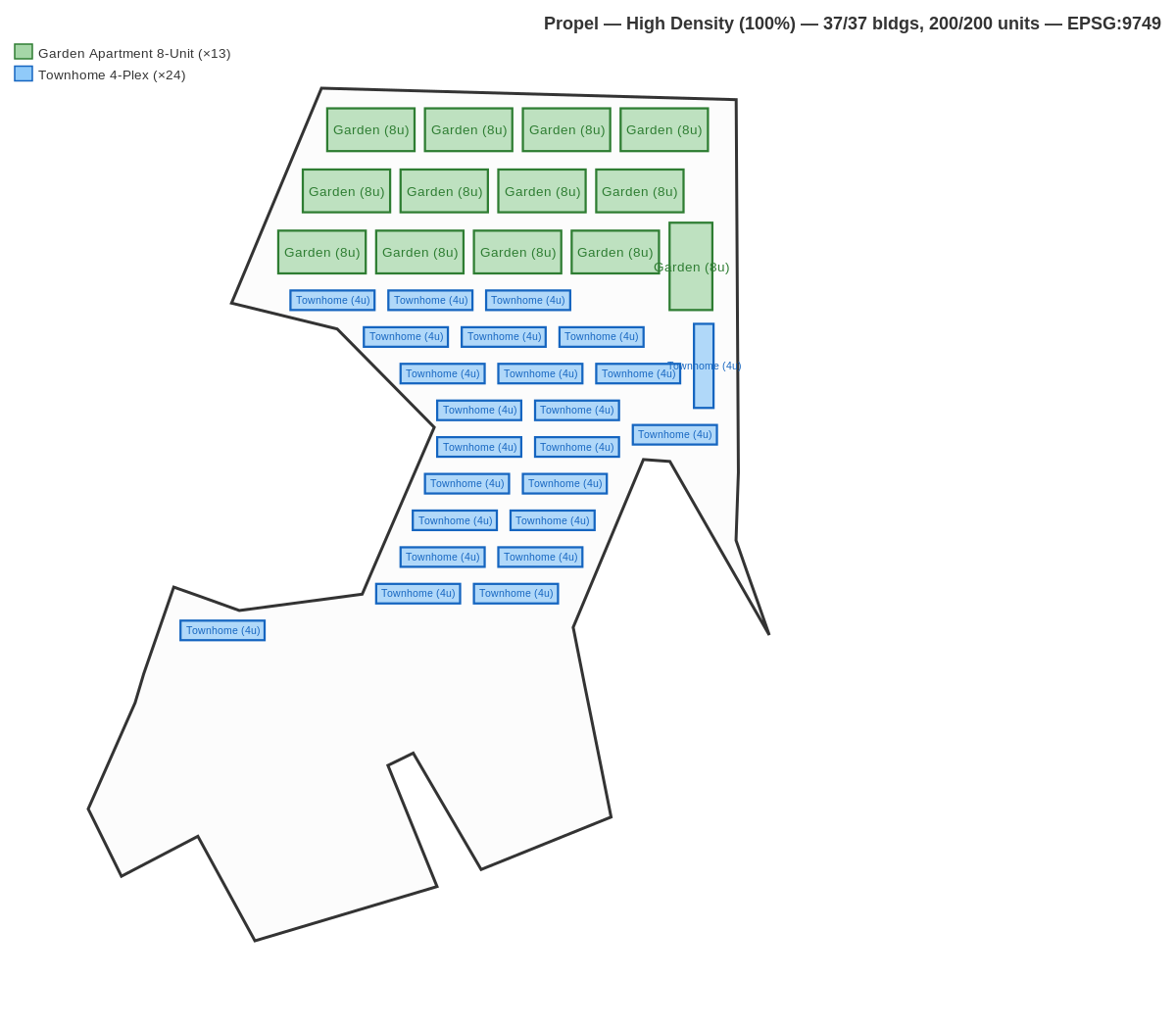

High Density (100%)
Medium Density (66%)

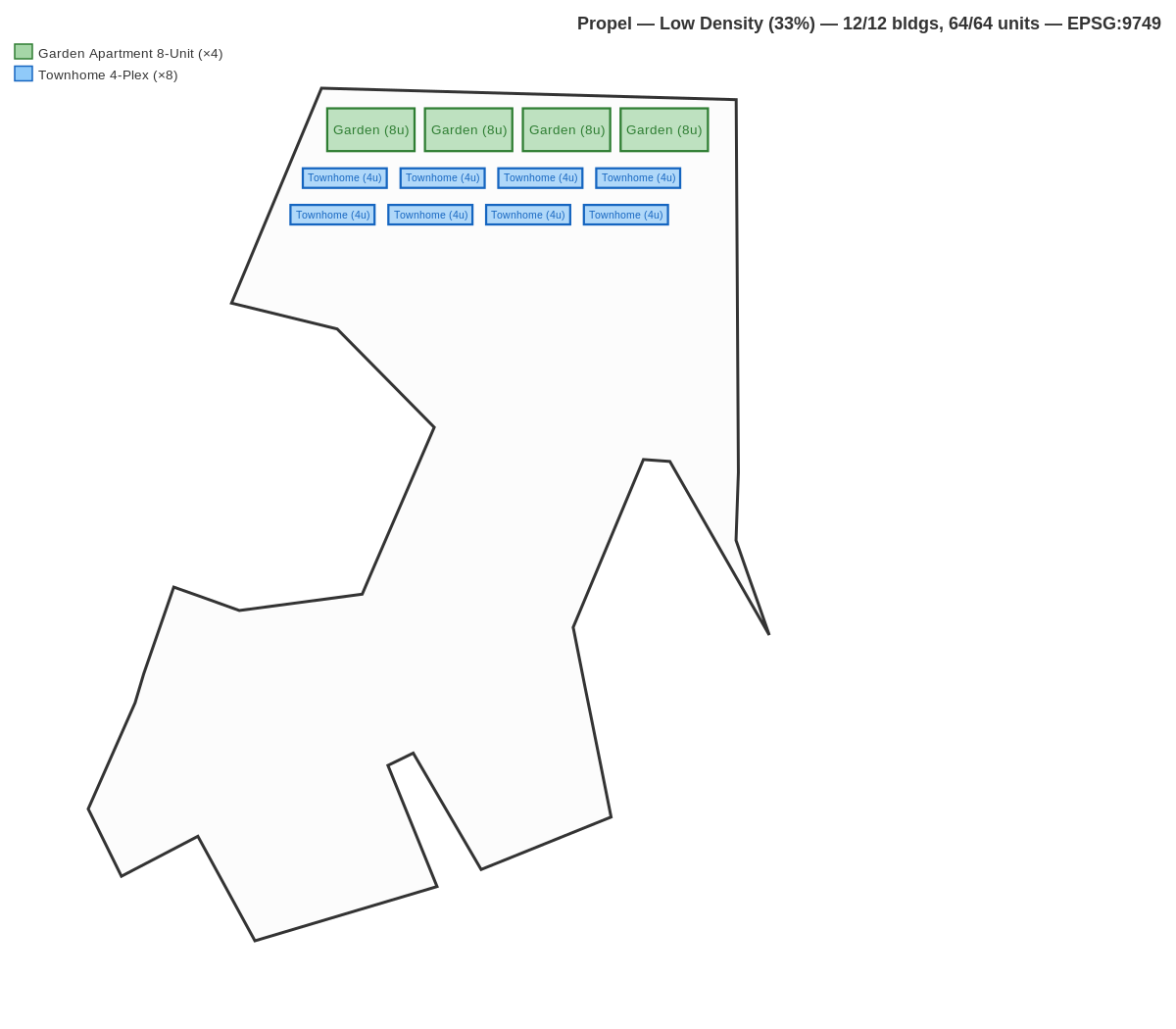

Low Density (33%)
