Auto Generated Plans
East Yard Commercial — Three density variants from project schedule
Building Site Breakdown
Building footprints from the schedule. Parking is shared across the site, not assigned per building.
| Product | Units/Bldg | Count | Structure | Parking (shared) | Setbacks & Buffer | Lot Size | Land Used |
|---|---|---|---|---|---|---|---|
| Sit-Down Restaurant | 1 | ×1 | 9,000 sf (90×100) | 36 spaces (36.0/unit) | 25,200 sf | 9,000 sf (90×100) | 0.2 ac |
| QSR / Drive-Thru | 1 | ×1 | 2,475 sf (45×55) | 10 spaces (9.9/unit) | 6,930 sf | 2,475 sf (45×55) | 0.1 ac |
| Auto Clinic (PPF/Tint) | 1 | ×1 | 5,100 sf (60×85) | 20 spaces (20.4/unit) | 14,280 sf | 5,100 sf (60×85) | 0.1 ac |
| Teaching Lab / Robotics | 1 | ×1 | 8,000 sf (80×100) | 32 spaces (32.0/unit) | 22,400 sf | 8,000 sf (80×100) | 0.2 ac |
| EV Fast Charge Station | 1 | ×1 | 1,800 sf (30×60) | 7 spaces (7.2/unit) | 5,040 sf | 1,800 sf (30×60) | 0.0 ac |
| Strip Center / Teaching Bays | 11 | ×1 | 45,000 sf (100×450) | 180 spaces (16.4/unit) | 126,000 sf | 45,000 sf (100×450) | 1.0 ac |
| 6 bldgs | 16 units | 1.6 ac |
6.8 Acre Site
1.6 acres are occupied by buildings and their lots.
The other 5.2 acres are available for
shared parking, driveways, stormwater ponds, and landscaping.
Rule of thumb: buildings typically occupy 25–35% of a commercial site. This plan uses 24%.
High Density (100%)

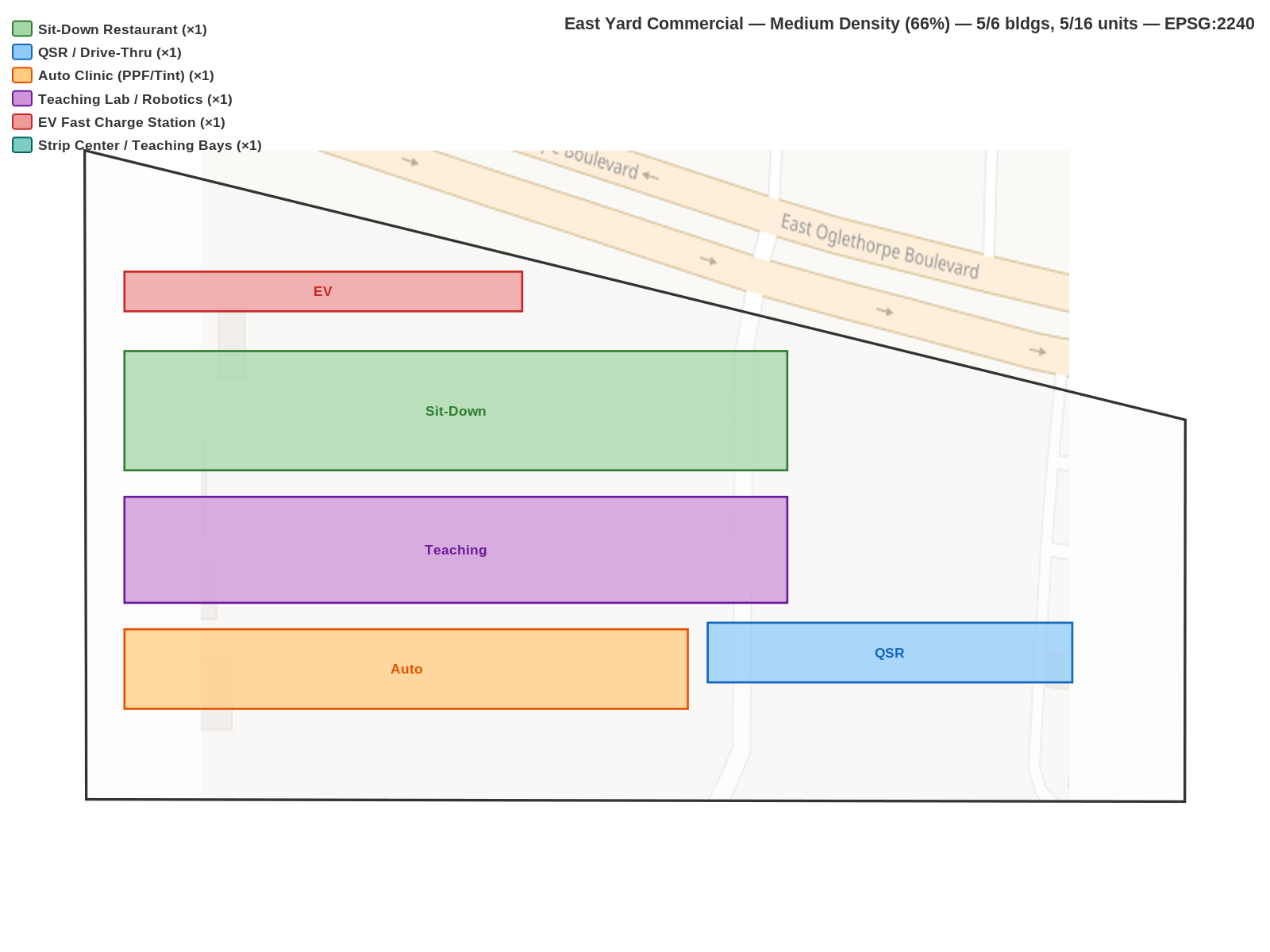

Medium Density (66%)
Low Density (33%)
